MDK-ARM 開發工具
深圳市米爾科技有限公司是ARM公司官方授權全線工具產品代理商, 提供ARM公司原裝正版開發工具(包括本產品 MDK-ARM)的銷售服務,以及ARM工具產品的市場推廣、產品更新、技術支持和售后服務。
概念:MDK-ARM也稱KEIL MDK-ARM、KEIL ARM、KEIL MDK、Realview MDK、I-MDK、uVision5(老版本為uVision4和uVision3)等,系為同一產品。
MDK-ARM軟件為基于Cortex-M、Cortex-R4、ARM7、ARM9處理器設備提供了一個完整的開發環境。 MDK-ARM專為微控制器應用而設計,而且功能強大,能夠滿足大多數苛刻的嵌入式應用。
MDK-ARM有四個可用版本,分別是MDK-Lite(免費評估版)、MDK-Essential、MDK-Plus、MDK-Professional。所有版本均提供一個完善的C / C++開發環境,其中MDK-Professional還包含大量的中間庫。

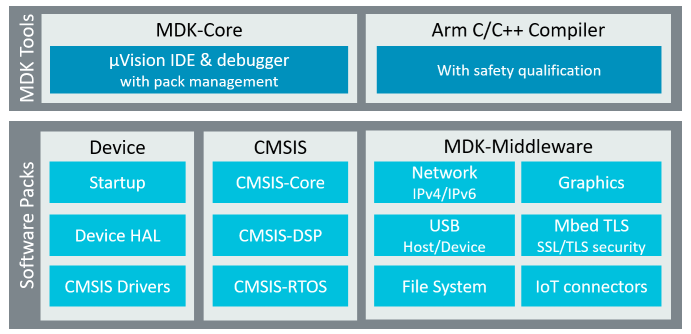

與Keil MDK4及之前版本不同,Keil MDK5分成MDK Core和Software Packs兩部分。MDK Core主要包含uVision5 IDE集成開發環境和ARM Compiler5。Software Packs則可以在不更換MDK Core的情況下,單獨管理(下載、更新、移除)設備支持包和中間件更新包。
Keil MDK的ARM C/C++ Compiler通過TüV Certified認證,完全符合IEC 61508-3標準的T3類開發工具要求。目前,Compiler編譯器的Safety Package僅包含在MDK專業版中。
MDK功能特點
- 完美支持Cortex-M V8、Cortex-M、Cortex-R4、ARM7和ARM9系列器件。
- 可使用在安全性較高要求的應用中和工程需要編譯器長期支持的環境
- 業行領先的ARM C/C++編譯工具鏈
- 提供前期虛擬器模型,滿足新架構下軟件驗證
- 穩定的Keil RTX ,小封裝實時操作系統(帶源碼)

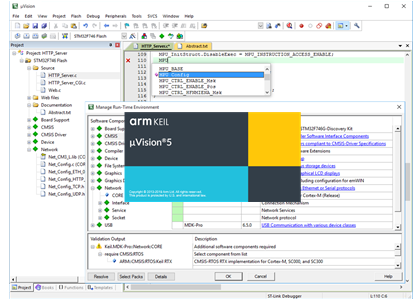

- μVision5 IDE集成開發環境,調試器和仿真環境
- TCP/IP網絡套件提供多種的協議和各種應用
- 保證IoT應用安全連接到互聯網需要
- 提供帶標準驅動類的USB 設備和USB 主機棧
- 為帶圖形用戶接口的嵌入式系統提供了完善的GUI庫支持
- ULINKpro可實時分析運行中的應用程序,且能記錄Cortex-M指令的每一次執行
- 關于程序運行的完整代碼覆蓋率信息
- 執行分析工具和性能分析器可使程序得到最優化
- 大量的項目例程幫助你快速熟悉MDK-ARM強大的內置功能
- DS-MDK Streamline實現Cortex-A/Cortex-M異構下的性能分析
- 符合CMSIS (Cortex微控制器軟件接口標準)

MDK-Lite(32 KB)版可任意下載使用,不需要序列號或許可密鑰。MDK-Lite通過使用一個有效的產品序列號可以轉換成其他MDK-ARM版本。
版本比較
Feature | MDK Edition | |||
Professional |
Plus | Essential | Lite | |
All-in-one solution including MiddlewareAll-in-one solution including Middleware |
Supports all microcontroller cores and Middleware |
Supports selected Cortex-M |
Free with code size limit: 32 KBytes |
|
μVision® | ||||
IDE with Editor, Pack Installer |
![]() |
![]() |
![]() |
![]() |
Debugger |
![]() |
![]() |
![]() |
32 KByte |
Fixed Virtual Platforms Simulation Models |
![]() |
![]() |
![]() |
![]() |
Arm® C/C++ Compiler | ||||
Compiler, Linker, Libraries, and Utilities |
![]() |
![]() |
![]() |
32 KByte |
Functional Safety Support and Extended Maintenance |
![]() |
![]() |
![]() |
![]() |
Device Support | ||||
Arm Cortex-M0/M0+/M3/M4/M7 |
![]() |
![]() |
![]() |
![]() |
Arm Cortex-M23/M33/M35P/M55 |
![]() |
![]() |
![]() |
![]() |
Armv8-M Architecture Models including FastModel |
![]() |
![]() |
![]() |
![]() |
Arm SecurCore® |
![]() |
![]() |
![]() |
![]() |
Arm7™, Arm9™, Arm Cortex-R4* |
![]() |
![]() |
![]() |
![]() |
RTOS and Middleware | ||||
CMSIS-RTOS RTX (with full source code) |
![]() |
![]() |
![]() |
![]() |
Middleware IPv4 Network, USB Device, File System, Graphics |
![]() |
![]() |
![]() |
![]() |
Middleware IPv6 Network, USB Host, mbed TLS |
![]() |
![]() |
![]() |
![]() |
Debug and Trace Support | ||||
ULINK Debug Adapters ULINK-ME, ULINK2, ULINKplus, ULINKpro |
![]() |
![]() |
![]() |
![]() |
Trace Streaming Instruction Trace, Embedded Trace Buffer, Micro Trace Buffer |
![]() |
![]() |
![]() |
![]() |
Advanced Analysis Tools Code Coverage, Performance Analyzer, Execution Profiler, Logic Analyzer |
![]() |
![]() |
![]() |
![]() |
Support and Maintenance | ||||
Updates and Technical Support Included | 12 Months | 12 Months | 12 Months |
![]() |
*All legacy cores are supported by Arm Compiler 5 only.
調試和跟蹤
Keil MDK支持以下仿真器調試和燒寫程序:
- Keil ULINK系列
- Freescale PE-Micro
- Nuvoton Nu-Link
- Segger J-LINK, J-Trace
- STMicroelectronics ST-LINK
- 基于CMSIS-DAP的Atmel, Freescale, NXP及其他仿真器
ULINKpro仿真器提供Cortex-M3/M4/M7的跟蹤流功能:
- Event Viewer
- Instruction Trace
- Complete Code Coverage
- Execution Profiling
-
Performance Analyser
