米爾科技提醒您：您的瀏覽器版本過低或者使用了兼容模式，為了獲得更好的瀏覽體驗，建議使用IE10以上的瀏覽器或使用極速模式。 請升級瀏覽器以獲得更好的體驗！

板載資源豐富，拓展性突出

  • 1GBDDR, 4GB eMMc ,32MB QSPI flash 的完善存儲組合，拒絕瓶頸
  • 板載千兆以太網 PHY及USB PHY，板載外置看門狗電路，完善易用
  • 雙140PIN 高速BTB提供豐富拓展IO：16 PS MIO，150PL MIO ，包括4路高速SERDES, 可支持PCIE, SATA, SFP等。

高品質與高性價比完美結合

Micron存儲，村田電容
Amphenol連接器
超高產品質量 		批量價格690RMB起
成本領先 		十年生命周期保證
選用無憂

配套軟件源碼完善成熟

作為XILINX全球官方合作伙伴，米爾同時提供完善的開發環境與工具支持

軟件資源及參數列表
類別 名稱 備注 源碼
Tool chains gcc 6.2.1 gcc version 6.2.1(Linaro GCC Snapshot 6.2-2016.11)
Boot loader BOOT.BIN 一級引導程序，包括 FSBL、U-boot Yes
Driver Linux 4.14.0 專為 MYD-C7Z010/20 的硬件制定的 Linux 內核 Yes
USB Host USB Host 驅動 Yes
Ethernet 千兆以太網驅動 Yes
MMC/SD/TF MMC/SD/TF 卡驅動 Yes
CAN CAN 驅動 Yes
LCD Controller LCD 觸摸屏驅動 Yes
HDMI HDMI 芯片 SII902X 驅動 Yes
Button Button 驅動 Yes
UART 串口驅動 Yes
LED LED 驅動 Yes
GPIO GPIO 驅動 Yes
QSPI QSPI Flash S25FL256S 驅動 Yes
RTC DS3231 RTC 驅動 Yes
電阻觸摸 TSC2007 電阻觸摸驅動 Yes
電容觸摸 FT5X0X 電容觸摸驅動 Yes
XADC XADC 驅動 Yes
File system Ramdisk Ramdisk 系統鏡像 Yes
Rootfs Buildroot 制作，包含 Qt5.11.3 Yes

提供豐富例程助力產品開發

長期持續更新中…

  • 第一章·················································································································· Hello_World

  • 第二章·················································································································· PL端擴展gpio-gpio_emio的使用方法

  • 第三章·················································································································· PL端axi_ip核的使用方法-uart回環測試

  • 第四章················································································································· PL端擴展gpio-axi_gpio的使用方法

  • 第五章················································································································· 如何捕獲PL端到PS端的中斷

  • 第六章················································································································· PL端參考擴展-使用axi uart ip核

  • 第七章················································································································· PL端iic總線擴展-使用axi iic ip核

  • 第八章················································································································· 7寸LCD屏幕測試

  • 第九章················································································································· HDMI接口測試

  • 第十章················································································································· 片上XADC的應用-使用PS端的模擬IO測量輸入電壓

  • 第十一章················································································································· 基于vdma的7寸lcd屏幕顯示sdk例程

  • 第十二章················································································································· 基于vdmad的hdmi顯示sdk例程
*提供相應源碼以及工程

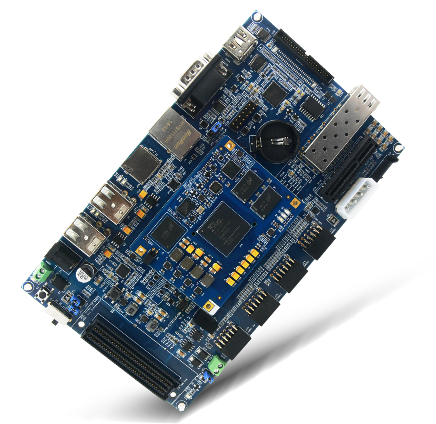

配套評估/開發板：MYD-C7Z015開發套件

高品質高拓展性ZYNQ7015開發平臺

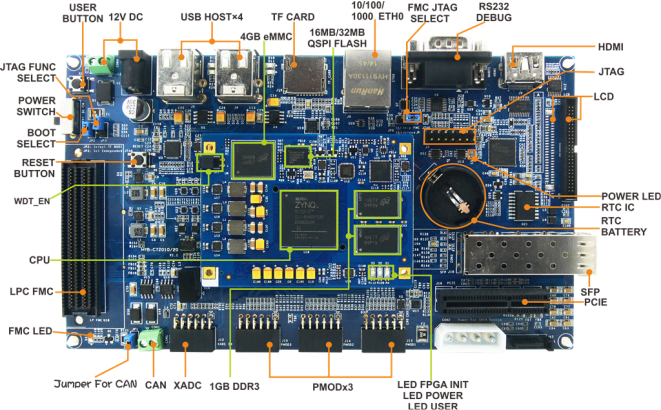

  • 提供豐富的高速及通用接口，為廣泛應用提供設計參考
    PS端: USB*4/TF Card/CAN/Ethernet/JTAG/RS232
    PL端: XADC/FMC/HDMI/LCD/TP/PMOD/SATA/PCIE/SFP
  • 提供完善的硬件參考&軟件源碼及教程，助力產品開發
  • 全一線品牌物料&高品質連接器，品質可靠
  • 按鍵與跳線設計完善易用&配件豐富，使用體驗優秀

MYD-C7Z015開發平臺架構框圖

產品型號配置與包裝清單

MYC-C7Z015核心板型號配置
核心板包裝清單
產品型號 產品配置 MYC-C7Z015核心板 1PCS
處理器 主頻 DDR3 eMMC 工作溫度
MYC-C7Z015-4E1D-766-I XC7Z015 766MHz 1GB 4GB 工 業級
DVD產品資料光盤 1PCS
MYD-C7Z015開發套件型號配置
開發板包裝清單
產品型號 產品配置 MYD-C7Z015開發板 1PCS
處理器 主頻 DDR3 eMMC 工作溫度 12V/1.25A直流電源適配器 1PCS
MYD-C7Z015-4E1D-766-I XC7Z015 766MHz 1GB 4GB 工業級 DVD產品光盤 1PCS
HDMI線 1PCS
1.5米交叉網線 1PCS
RS232轉USB線 1PCS
16G TF Card 1PCS
